TSN SMC 10G

Automotive Ethernet physical layer converter with 10G auto-negotiation algorithm

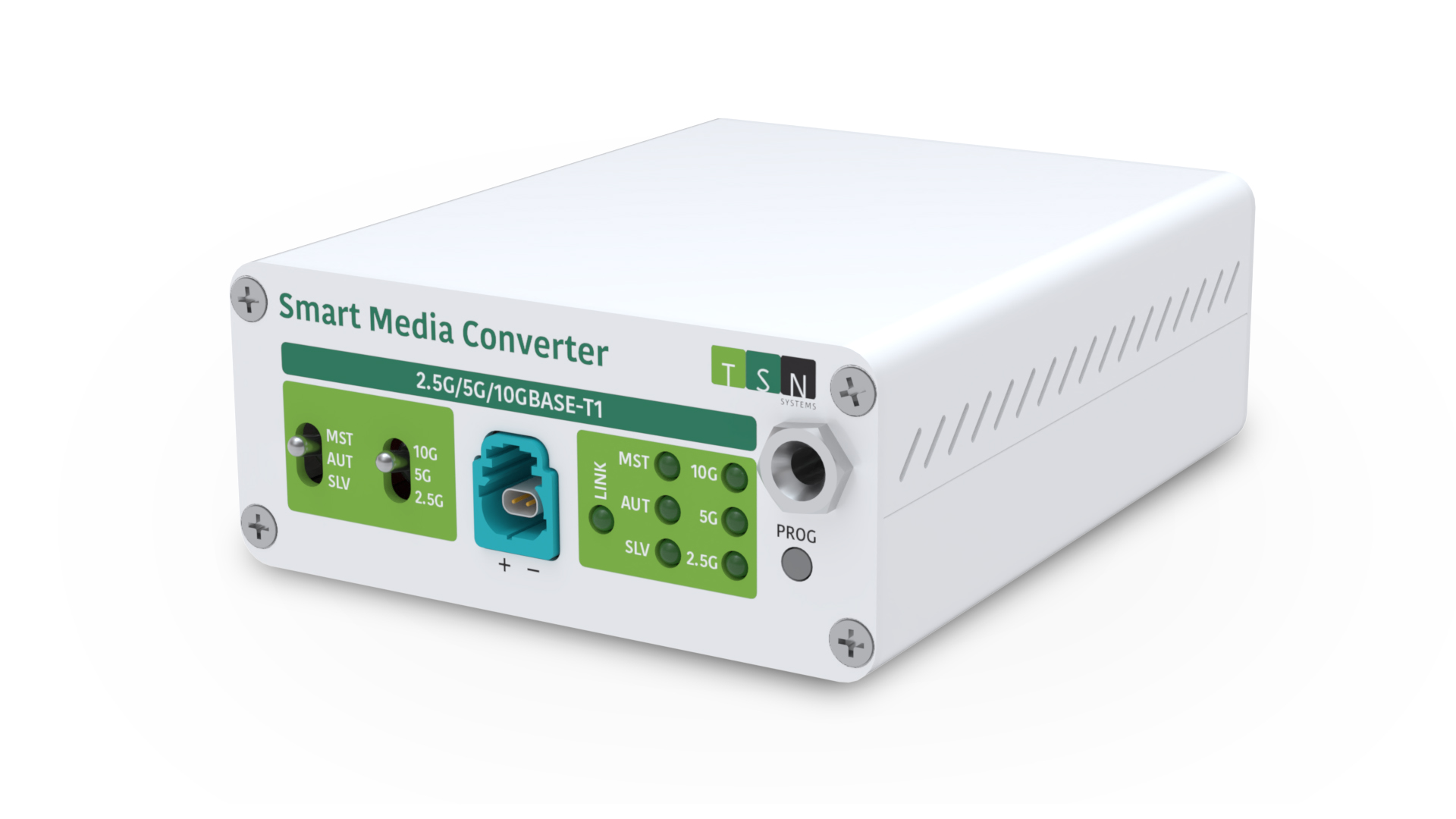

The TSN Smart Media Converter (SMC) 10G is a highly flexible tool for use in various environments such as laboratory, vehicle or HiL.

The SMC converts 2500/5000/10000BASE-T and 2500/5000/10000 BASE-T1 connections. It works completely transparently; no packets are buffered or filtered. This means that the SMC is also suitable for all future time-sensitive applications that use gPTP or TSN protocols in general. All settings can be adjusted intuitively by hand on the device without the need for a PC.

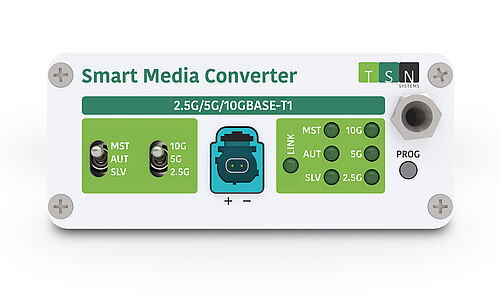

The speeds of the T1 ports and the master/slave settings can be set manually using toggle switches. In addition, the SMC offers a new automated procedure for the master/slave and link speed settings that is compatible with all T1 PHYs on the market.

In this auto mode, the T1 connection automatically synchronizes with its connection partner. This can save an enormous amount of time when used in complex and distributed systems.

The device's firmware can be updated via a supplied USB connection, and terminal access is also possible.

The most important features are:

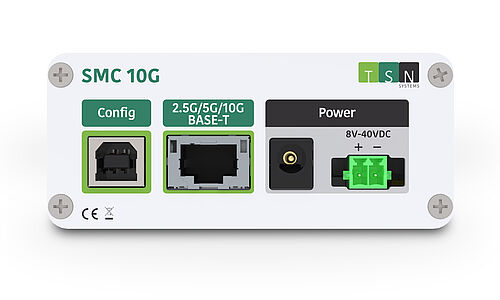

• 1 x IEEE 2500/5000/10000 -BASE T1 port
• 1 x IEEE 2500/5000/10000 BASE-T port
• 1 x USB B-type port for firmware updates and terminal access
• Fully TSN compliant
• Ultra-fast start for in-vehicle use
• Small dimensions, full metal housing for environmental and EMC protection
• Status LEDs indicate mode, speed and connection status
• Wide voltage range of 9V-40VDC for use in virtually any application
• Dual power supply sockets for use with conventional DC connectors or a lockable Phoenix connector for power supply from other sources
• T1 connectors compatible with all TSN Systems products
• Static or auto-set port roles with manual control
